Apple OAuth

Portal identifies an End User by their email address, and Sign in with Apple lets users hide theirs. When an End User picks Hide My Email, Apple gives Portal a private relay address such as abc123@privaterelay.appleid.com instead of their real one, and that relay address is what Portal stores.The consequence is that the same person is two separate end users, with two separate wallets, if they sign in with Apple using a relay address and with another method using their real address. Read How Apple handles email addresses before you offer Apple alongside Google or magic links.

Step 1: Find your Team ID

Sign in to the Apple Developer portal. Your Team ID is shown in the Membership details section. It is a ten-character value such as A1B2C3D4E5.

Step 2: Create an App ID

Go to Certificates, Identifiers & Profiles > Identifiers.
Add an identifier and choose App IDs, then App.
Set a description and a Bundle ID in reverse-domain form, for example com.example.app.
Under Capabilities, enable Sign in with Apple.
Save. The Bundle ID is the value you will enter into Portal as the App ID.

Step 3: Create a Services ID

The Services ID is the identifier Apple treats as the OAuth client for web sign-in. It is a separate identifier from the App ID.

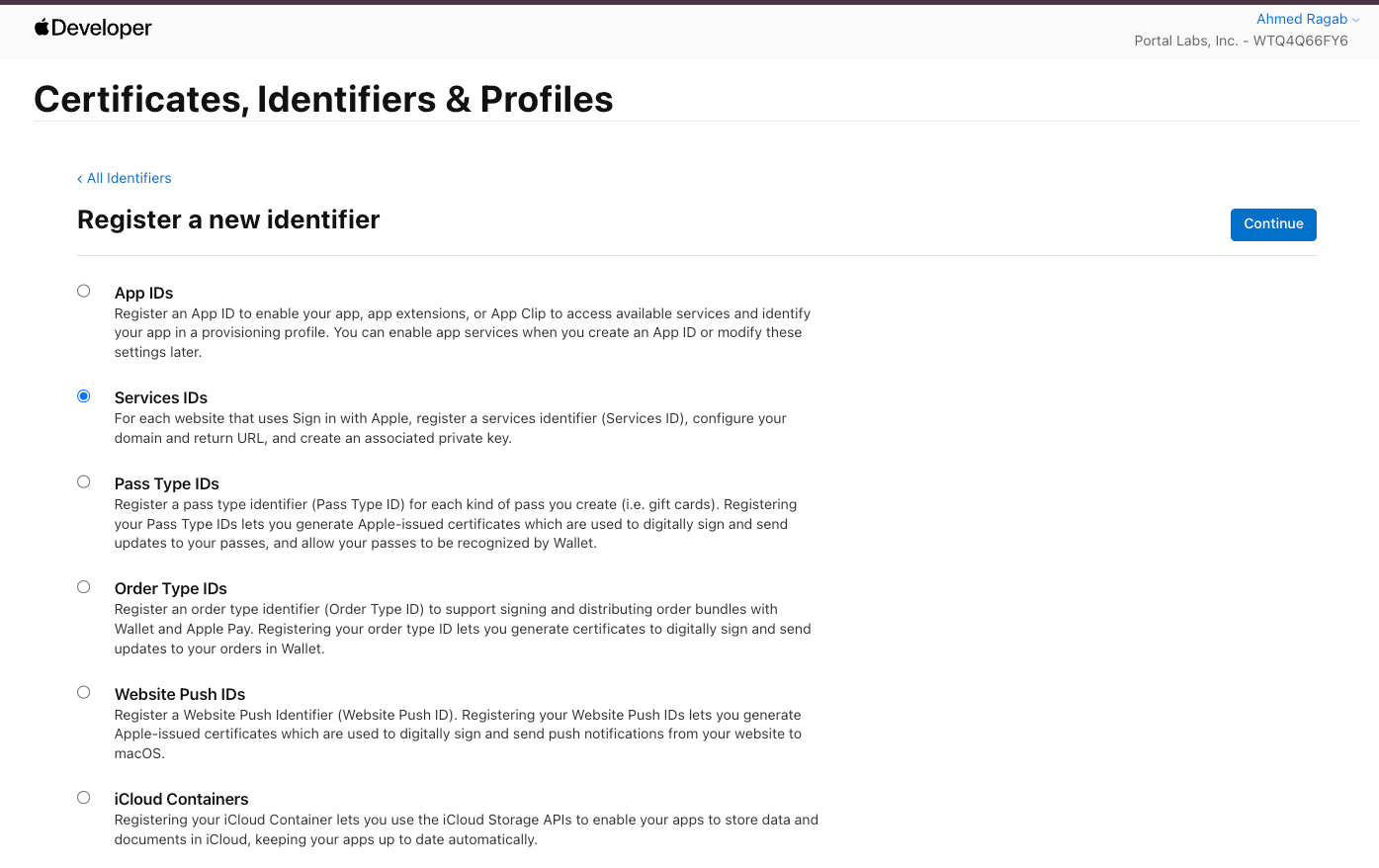

In Identifiers, add another identifier and choose Services IDs.
Set a description and an identifier, for example com.example.auth. This is the value you will enter into Portal as the Service ID.
Save, then reopen the Services ID and enable Sign in with Apple.

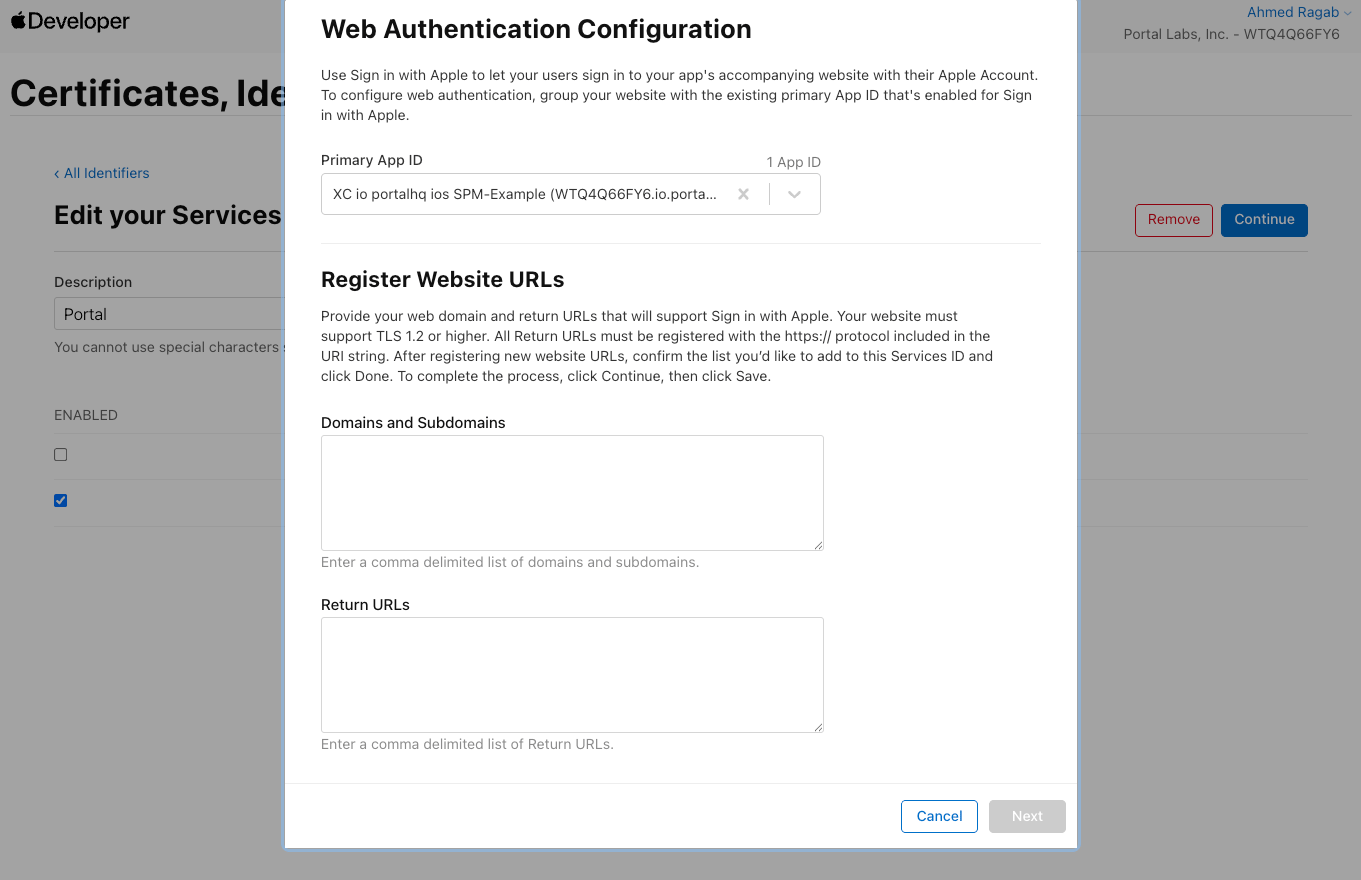

Click Configure and set:
- Primary App ID: the App ID from step 2.
- Domains and Subdomains: api.portalhq.io
- Return URLs: the Portal callback URL for each environment, as described in The return URL Apple needs.
Save.

The return URL Apple needs

The Apple OAuth process should redirect to Portal, which verifies the sign-in with Apple and then redirects the user on to your Redirect URL. The return URL you register with Apple is therefore a Portal URL:

https://api.portalhq.io/api/v3/auth/oauth/callback/<AUTH_ENVIRONMENT_ID>

Replace <AUTH_ENVIRONMENT_ID> with the Auth Environment ID from Authentication > Configure. Each environment has a different Auth Environment ID, so register a return URL for each environment you plan to use.

Apple requires the return URL to match exactly. No trailing slash, https only, and the Auth Environment ID has to be correct. A mismatch fails the sign-in before the user returns to your app.

Go to Certificates, Identifiers & Profiles > Keys.
Add a key, give it a name, and enable Sign in with Apple.
Click Configure and select the App ID from step 2 as the primary App ID.
Register the key and download the .p8 file.
Note the Key ID shown on the key’s page.

The .p8 file can only be downloaded once. Store it somewhere safe. If you lose it you have to revoke the key and create a new one.

Step 5: Enter the credentials in Portal

Information from Apple (to enter in Portal):

Team ID: your ten-character Apple team identifier
App ID: the Bundle ID from step 2, for example com.example.app
Service ID: the Services ID from step 3, for example com.example.auth
Key ID: the identifier of the key from step 4
Private key: the full contents of the .p8 file

In the dashboard, click Configure in the left sidebar, under Authentication, and select the environment.
In the Apple OAuth section, turn on the toggle.
Fill in all five fields and save.

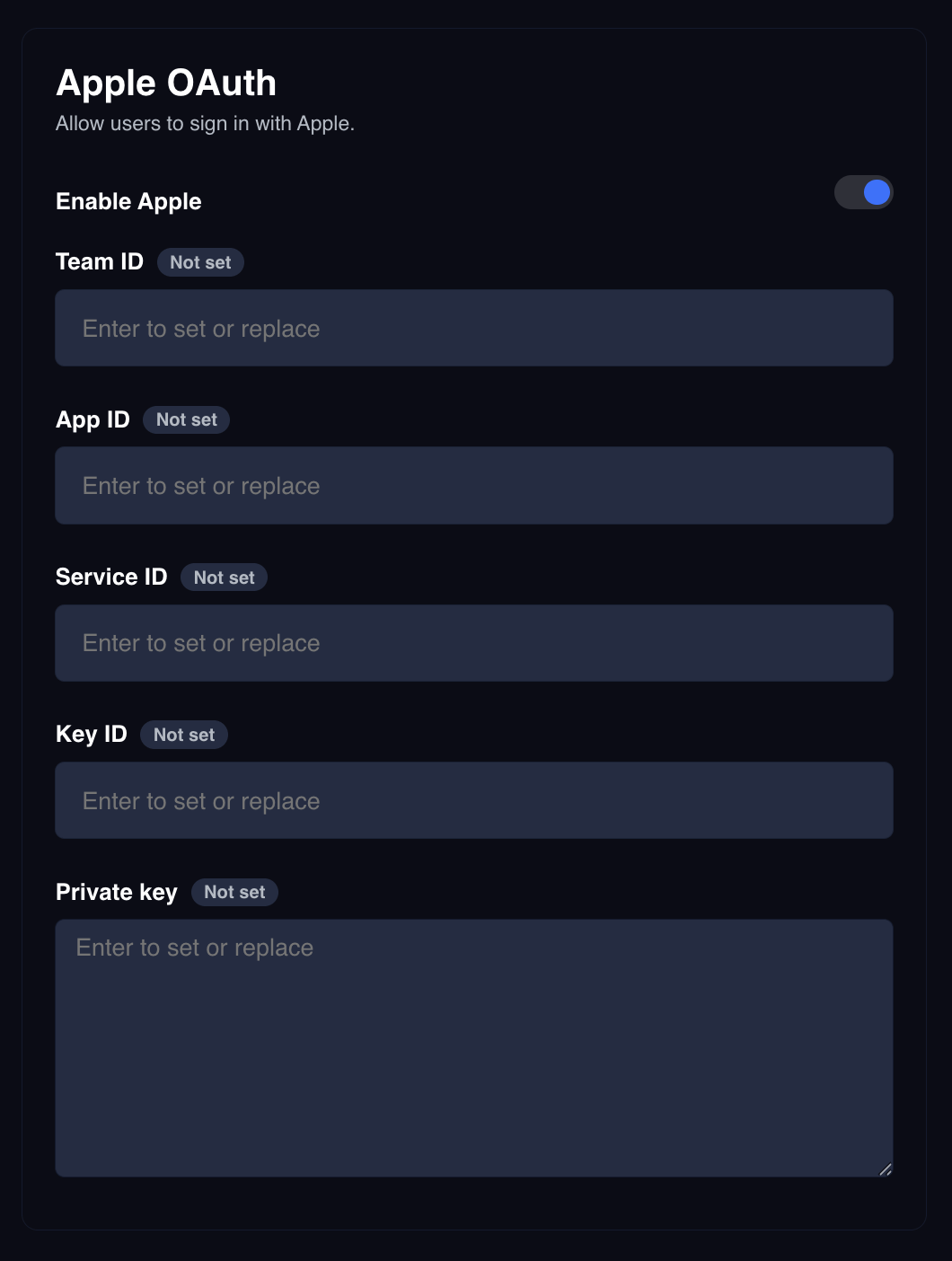

Apple OAuth section with the enable toggle and the Team ID, App ID, Service ID, Key ID, and Private key fields

Paste the private key exactly as it appears in the .p8 file, including the -----BEGIN PRIVATE KEY----- and -----END PRIVATE KEY----- lines. All five fields are write-only. After saving, each shows that a value is stored rather than the value itself. To replace one, type the new value and save. To leave a stored value alone, leave its field empty.

Step 6: Sign a user in

Get the authorize URL

curl --request GET \
  --url 'https://api.portalhq.io/api/v3/auth/oauth/urls?redirectUrl=https%3A%2F%2Fexample.com%2Fcallback' \
  --header 'x-portal-auth-environment-id: <AUTH_ENVIRONMENT_ID>'

{
  "data": {
    "apple": "https://appleid.apple.com/auth/authorize?client_id=com.example.auth&..."
  },
  "metadata": null
}

The response contains an apple key only if Apple is enabled on the environment. redirectUrl must be URL-encoded and must exactly match one of your Redirect URLs.

Send the user to Apple

Open data.apple in a browser. The user signs in and consents, choosing whether to share their real email address or use Apple’s private relay. Apple posts the result to Portal, Portal verifies it, and Portal redirects the user to your Redirect URL:

https://example.com/callback?token=<TOKEN>&login_type=APPLE

Exchange the token

curl --request POST \
  --url https://api.portalhq.io/api/v3/auth/oauth/tokens \
  --header 'x-portal-auth-environment-id: <AUTH_ENVIRONMENT_ID>' \
  --header 'Content-Type: application/json' \
  --data '{ "token": "<TOKEN>" }'

{
  "data": {
    "endUserId": "clx1enduser00000000000000",
    "clientSessionToken": "b7c1f0a2-3d4e-5f60-8a91-2b3c4d5e6f70",
    "userJwt": null,
    "totpLink": null
  },
  "metadata": null
}

If the environment requires a second factor, clientSessionToken is null and userJwt is set. See Two-factor authentication. If the user cancels, or the exchange fails, Portal redirects them to your Redirect URL with an error instead of a token:

https://example.com/callback?error=oauth_failed

Check for error before looking for token on your callback page, and offer the user another attempt.

How Apple handles email addresses

Portal identifies an end user by email address, and Apple’s behaviour around email is worth knowing about.

Apple only returns the user’s email on their first consent for a given Services ID. Portal records it then and recognizes the user by their Apple account on later sign-ins.
If Apple does not supply an email, Portal cannot create the end user and the sign-in fails. In practice this happens when a user has previously consented under a different configuration.
If the user chooses Hide My Email, Apple supplies a private relay address such as abc123@privaterelay.appleid.com. That relay address is what Portal stores, so a user who signs in with Google/Magic Links using their real address and with Apple using a relay address is treated as two separate end users, each with their own wallet.

Relay addresses are stable, so a user who returns via Apple with Hide My Email lands on the same end user and the same wallet each time. The mismatch only shows up when the same person also uses a different sign-in method. If you offer more than one method, decide up front how you want this to behave. Presenting Apple as the only option avoids the problem entirely, as does treating the two sign-ins as genuinely separate accounts. What does not work is assuming a person is one end user regardless of how they signed in.
