Email magic links

A magic link signs a user in from an email. Your app asks Portal to email a link, the user clicks it, and they land back on your site with a single-use token your app exchanges for a Client Session Token. Magic links are sent from your domain, not from Portal, so two things have to be in place first:

A sending domain, verified with DNS records and enabled for the environment.
An email template, containing the sign-in link.

Both are configured once per custodian and can then be used by any of your environments.

Step 1: Add a sending domain

Step 1: Click Domains in the left sidebar, under Authentication. Step 2: Click to add a domain and fill in:

Domain: the domain the emails are sent from, for example auth.example.com.
From email: the address the emails come from. It must be an address on the domain above, for example hello@auth.example.com.
Environments: which environments are allowed to send from this domain.

Domains list showing each sending domain with its from email and assigned environments

The from email has to be lowercase and on the domain you entered. A from email such as Hello@auth.example.com or hello@other.example.com is rejected.

Step 2: Add the DNS records

Saving the domain takes you to its detail page, which lists the DNS records to add at your DNS provider. These are the SPF and DKIM records that let mailbox providers confirm the email genuinely came from your domain.

Domain detail page listing the SPF and DKIM DNS records to add, each with type, name, value, and status

Add every record exactly as shown, then come back and click Verify DNS records.

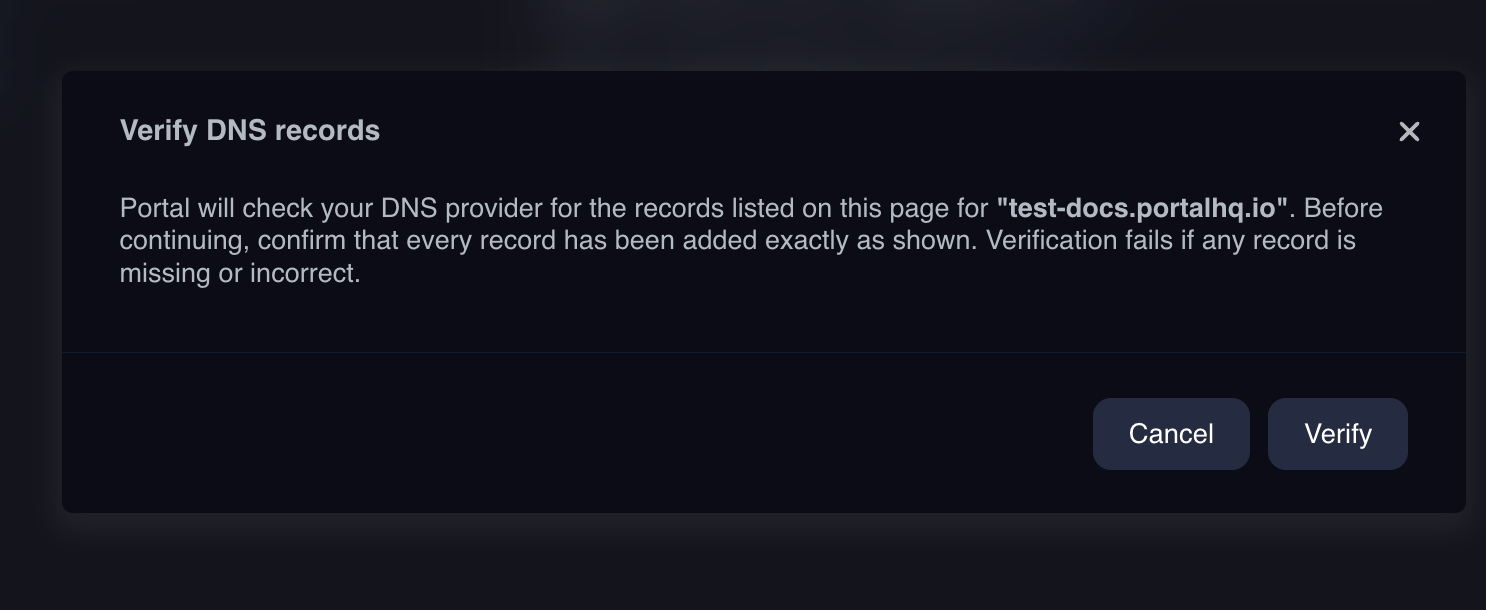

Verify DNS records confirmation modal explaining that verification fails if any record is missing or incorrect

Verification checks all of the records at once and fails if any one of them is missing or does not match. DNS changes can take a while to propagate, so if verification fails immediately after you add the records, wait and check the domain again.

Domain statuses

Status	Meaning
`not_started`	The records have not been checked yet.
`pending`	Verification is in progress.
`verified`	All records are correct. The domain can send.
`partially_verified`	Some records are correct and others are not yet.
`failed`	Verification failed. Re-check the records against your DNS provider.
`partially_failed`	Some records failed.

A domain has to reach verified before magic links will send from it.

Step 3: Create an email template

Step 1: Click Templates in the left sidebar, under Authentication. Step 2: Create a template and give it a name and a subject.

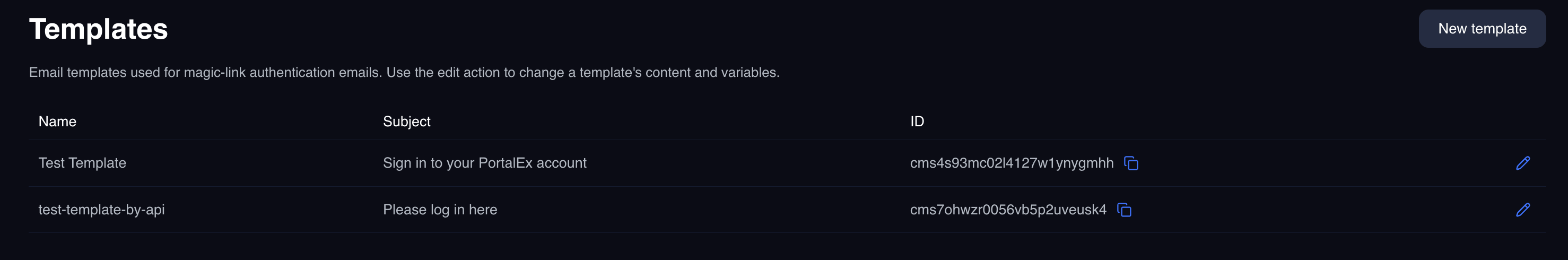

Templates list showing each template's name, subject, and copyable ID

Step 3: Build the email body in the editor. Portal starts you off with a working default: a heading, a short explanation, a sign-in button, and a fallback link.

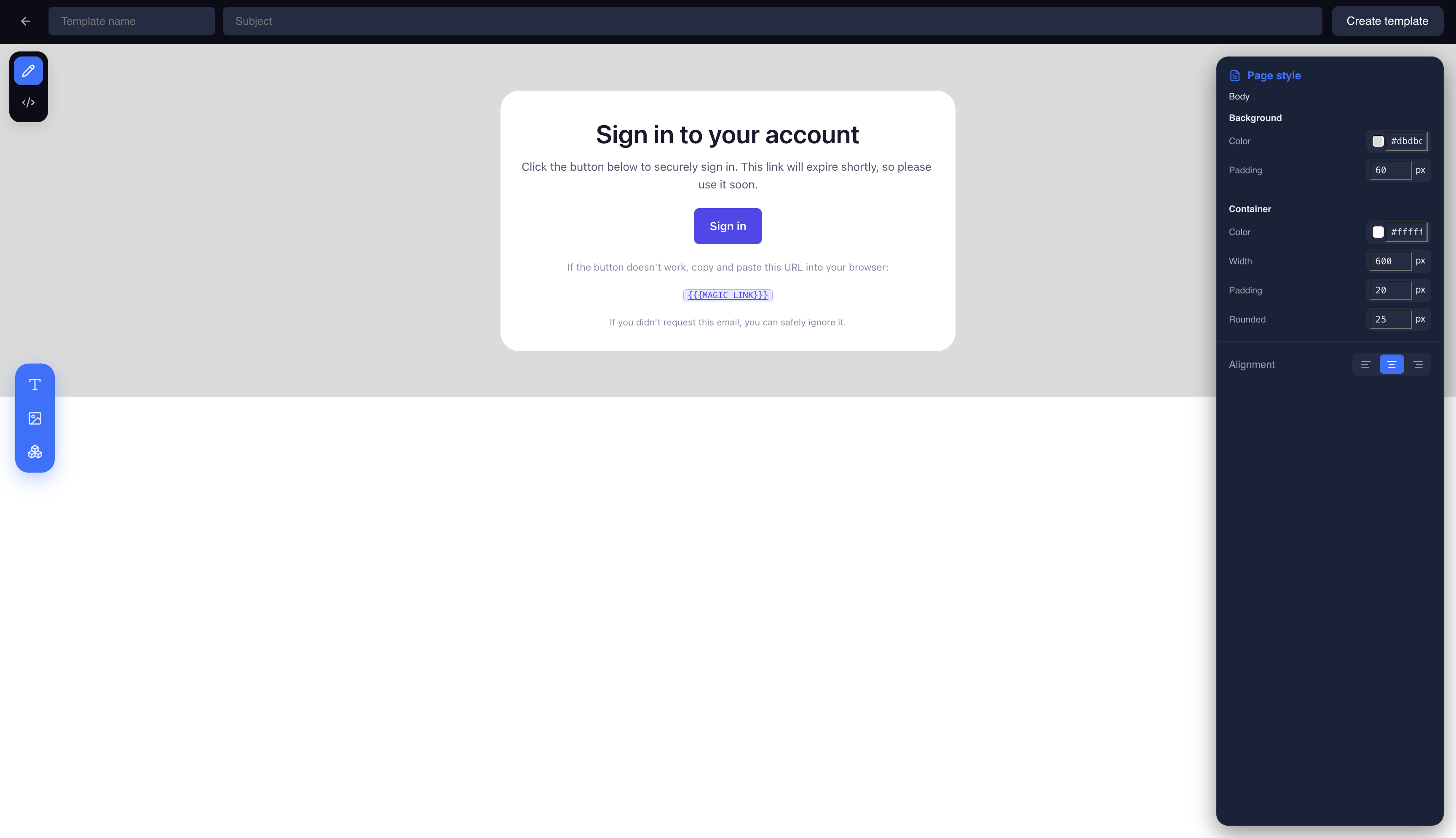

Magic link template editor showing the visual editing surface with the sign-in button selected

The magic link variable

Whatever else you change, the template has to contain the magic link. The sign-in URL is injected at send time through the MAGIC_LINK variable, written with three braces on each side:

<a href="{{{MAGIC_LINK}}}">Sign in</a>

It has to be the href of a link. Portal checks for exactly that before saving, and blocks the save with a Sign in button not configured warning if it cannot find it. A template without it would send users an email they cannot sign in from, so there is no way to save around the check.

Putting {{{MAGIC_LINK}}} in the body as visible text does not satisfy the check, and neither does two braces or a button whose href points anywhere else. It has to appear as href="{{{MAGIC_LINK}}}" on an anchor.

Case does not matter when you type it. {{{magic_link}}} is normalized to {{{MAGIC_LINK}}} when you save, and the check runs after that normalization, so lowercase placeholders pass.

The visual editor

New templates open in the visual editor, prefilled with a working design: a heading, a short explanation, a sign-in button already wired to {{{MAGIC_LINK}}}, a fallback link with the raw URL for clients where the button does not render, and a closing line telling the recipient to ignore the email if they did not request it. You can edit text, adjust alignment and colours, insert images, and restyle the sign-in button. The button and the fallback link are variable-aware, so they keep pointing at the magic link as you restyle them and you do not need to touch the placeholder by hand. If you only need to change the wording and branding, stay here. Portal preserves the editor’s state with the template, so reopening it later gives you the same document back rather than a re-imported approximation.

The HTML editor

For full control over the markup, switch the template to HTML editing. The code view is a split screen: an editable, syntax-highlighted HTML editor on the left, and a live preview of that HTML on the right, updating as you type. The preview is sandboxed, so scripts in the markup do not run. Use it when the visual editor cannot express what you need, for example bringing across an existing email design, hand-tuning table layouts for a specific mail client, or adding media queries.

Switching to HTML editing is a one-way change. Portal asks you to confirm, and once you edit the raw HTML the template can no longer be edited in the visual editor. Your current design is carried over as HTML, and the template reopens locked to the code view from then on.

When you save from the code view, the {{{MAGIC_LINK}}} requirement is enforced here exactly as it is in the visual editor, which is the failure worth watching for. It is easy to restructure the markup by hand and lose the href in the process, and the warning modal is explicit that the button needs an href of {{{MAGIC_LINK}}}.

The template name cannot be changed after the template is created. The subject and body can be edited at any time, and edits go live for new sends as soon as you save.

Copy the template ID

Your app passes the template’s ID when it requests a magic link. Copy it from the ID column in the Templates list. Store it in your app’s configuration alongside your from email.

This is the Portal template ID shown in the dashboard. It is not the ID used by Portal’s underlying email delivery provider, and the two are not interchangeable.

Step 4: Send a magic link

With a verified domain and a template, your app can send. All four fields are required.

curl --request POST \
  --url https://api.portalhq.io/api/v3/auth/magic-links \
  --header 'x-portal-auth-environment-id: <AUTH_ENVIRONMENT_ID>' \
  --header 'Content-Type: application/json' \
  --data '{
    "email": "user@example.com",
    "redirectUrl": "https://example.com/callback",
    "fromEmail": "hello@auth.example.com",
    "templateId": "<TEMPLATE_ID>"
  }'

{
  "data": { "sent": true },
  "metadata": null
}

Field	Requirement
`email`	The user’s email address. Must be lowercase.
`redirectUrl`	Must exactly match one of the environment’s Redirect URLs.
`fromEmail`	Must belong to a verified domain that is enabled for this environment.
`templateId`	Must be one of your Portal templates.

sent: true confirms Portal accepted the request and handed the email off for delivery. It does not confirm the message reached the inbox.

Magic link sends are rate limited per environment and email address. If your app lets users request a new link, expect a 429 when someone taps the button repeatedly, and show them a “check your inbox or try again shortly” message rather than an error.

Step 5: Exchange the token

The user receives the email and clicks through to your Redirect URL, which Portal appends a token to:

https://example.com/callback?token=<TOKEN>&authMethod=EMAIL_MAGIC_LINK

Read token from the query string and post it back:

curl --request POST \
  --url https://api.portalhq.io/api/v3/auth/magic-links/validations \
  --header 'x-portal-auth-environment-id: <AUTH_ENVIRONMENT_ID>' \
  --header 'Content-Type: application/json' \
  --data '{ "token": "<TOKEN>" }'

{
  "data": {
    "endUserId": "clx1enduser00000000000000",
    "clientSessionToken": "b7c1f0a2-3d4e-5f60-8a91-2b3c4d5e6f70",
    "userJwt": null,
    "totpLink": null
  },
  "metadata": null
}

If the environment requires a second factor, clientSessionToken is null and userJwt is set instead. See Two-factor authentication.

The token is single-use. Some email clients and security scanners pre-fetch links in messages, which can consume a token before the user clicks it. Exchange the token from the page the user lands on rather than from anything that runs when the link is merely fetched, and handle a 401 by offering to send a new link.
